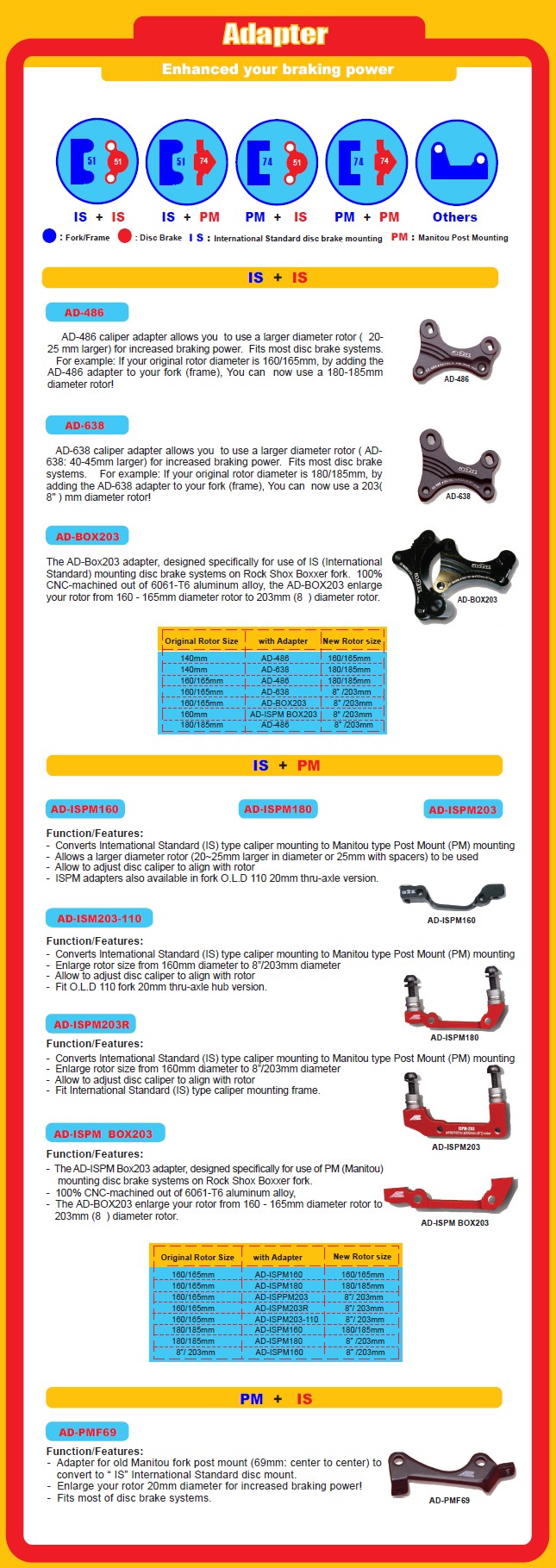

| AD-486 caliper adapter allows you to use a larger
diameter rotor ( 20-25 mm larger) for increased braking power. Fits
most disc brake
systems. For example: If your original rotor diameter is 160/165mm,
by adding the AD-486 adapter to your fork (frame), You can now use
a 180-185mm diameter rotor! |
|
 |
| |
|
|
| AD-638 caliper adapter allows you to use a larger
diameter rotor ( AD-638: 40-45mm larger) for increased braking power.
Fits most disc
brake systems. For example: If your original rotor diameter is 180/185mm,
by adding the AD-638 adapter to your fork (frame), You can now use
a 203( 8" ) mm diameter rotor! |
|
 |
| |
|
|
| The AD-Box203 adapter, designed specifically for use of IS (International
Standard) mounting disc brake systems on Rock Shox Boxxer fork. 100%
CNC-machined out of 6061-T6 aluminum alloy, the AD-BOX203 enlarge your
rotor from 160 - 165mm diameter rotor to 203mm (8 ) diameter rotor. |
|
 |
| |
|
Original
Rotor Size
|
with
Adapter |
New
Rotor size |
140mm |
AD-486 |
160/165mm |
140mm |
AD-638 |
180/185mm |
160/165mm |
AD-486 |
180/185mm |
160/165mm |
AD-638 |
8"/203mm |
160/165mm |
AD-BOX203 |
8"/203mm |
160mm |
AD-ISPM BOX203 |
8" /203mm |
180/185mm |
AD-486 |
8"/203mm |
|
|
| |
|
|
|
